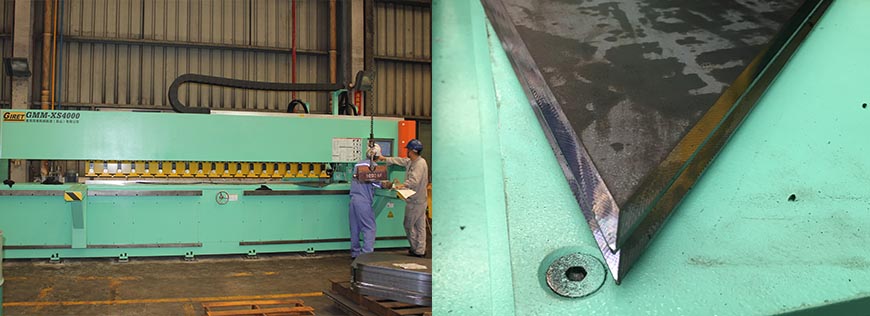

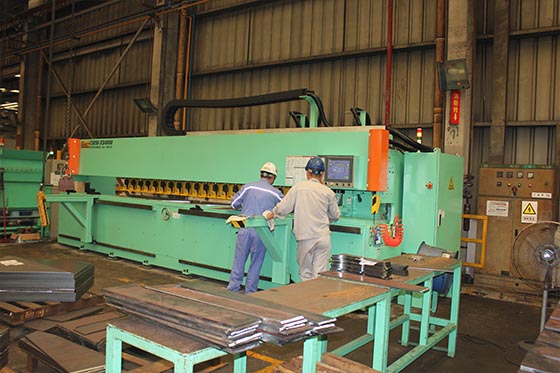

CNCedge milling machine GMM-XS4000 at the japan Z.K.M

Gmm-xS4000 CNC automatic table edge milling machine (HMI edge milling machine / touch screen edge milling machine) processing capacity:

Bevel angle

Upper spindle groove angle: 0 ~ 85 ° (no step adjustment), supporting 90 degrees

Lower spindle groove angle:0 ~ 60 ° (no step adjustment)

Groove width

Upper spindle 0 ~ 85 degrees groove width:0~100mm

Upper spindle 90 degree step groove width: 0~40mm

Feed speed:0 ~ 2000mm / min (according to material change)

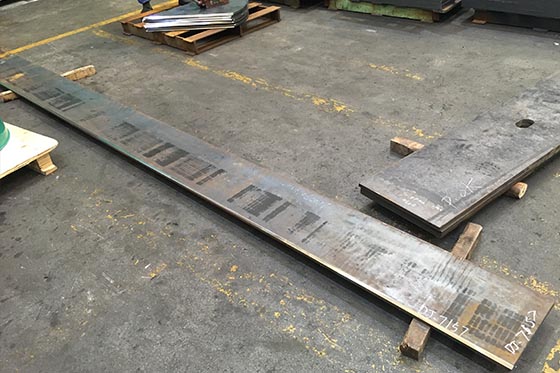

Thickness plate:6 ~ 80mm (thicker can be customized)

Length plate:> 150mm (measured length, shorter can be proofed)

Processing travelled; 4000mm

Processing material: Carbon steel, stainless steel, aluminum alloy and other metal materials

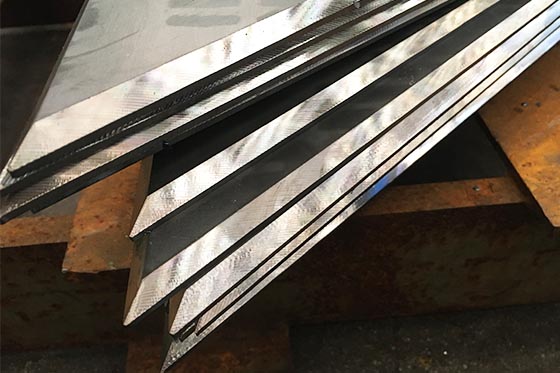

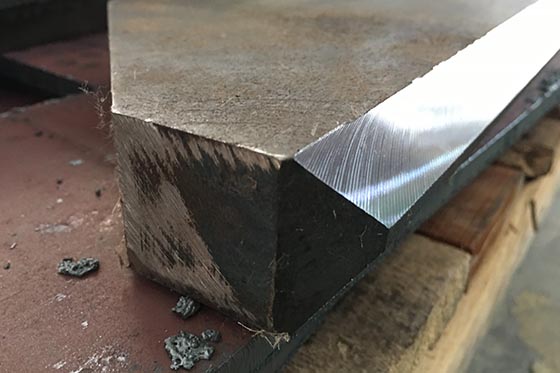

Machining bevel style: V type / K type / Y type / X type / U type / L type / 0 degree trimming

Bevel angle accuracy: ± 0.5 degrees

Bevel straightness accuracy: ±0.5mm

Bevel width accuracy : ±0.5mm

Operation mode: HMI, human-computer interaction, touch screen control

Gmm-xS4000 CNC edge milling machine (CNC bench type edge milling machine) features:

1. PLC system control, the system is more stable;

2. HMI human-computer interaction interface, touch screen operation, intelligent beveling machine, which can be operated by ordinary workers;

3. Safer operation: the control panel is low-voltage, and the normal operation is far away from the moving components;

4. There is no step adjustment for the angle of the uphill opening of 0 ~ 85 degrees, and there is no step adjustment for the angle of the downhill opening of 0 ~ 60 degrees;

5. The accuracy of groove angle shall reach ± 0.5 degrees;

6. The straightness of processing groove shall reach the accuracy of ± 0.5mm;

7. Equipped with electrical cooling system;

8. Equipped with automatic chip removal system, cleaner;

9. More environmental protection, no cutting fluid and low noise;

10. Processing data can be stored and called at any time;

11. The human-computer interface diagram is intuitive;

12. Misoperation prevention system, automatic shielding beyond the limit;

13. The first construction starts the automatic operation groove program;

14. No manual calculation of processing data is required for groove processing, and the system automatically cuts in layers;

15. It supports two language versions, Chinese / English by default, and the language can be customized according to customer requirements;

16. Cold cutting, no oxidation deformation on the surface;

17. Real time monitoring of system input and output status;

18. Support remote rescue to make users feel more at ease;

19. The upper and lower groove angles are adjusted independently. The system allocates the spindle according to the customer's input data.
