Feed speed 0~4m/mikn, Double spindle toghter processing R3, cold cutting.

GCM-R3TD Chamfered edge machine powe Technical parameters:

Power Supply：AC380V 50HZ

Gas Source：0.5~0.8Mpa

Total Power：1900W

Spindle Speed：2800r/min

GCM-R3TD Chamfered edge machine processing Technical parameters

Clamping Thickness：8~60mm

Clamping Width:＞100mm

Processing Length：＞300mm

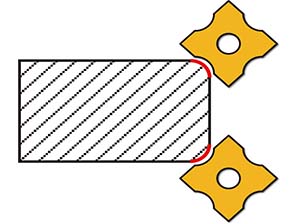

Processing Capacity：C2/C3/R3/R2

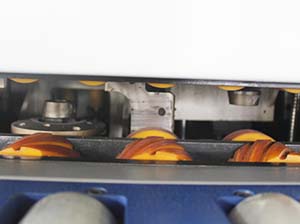

Cutter Diameter：2*φ60mm

Cutter Qty：2*3pcs

Worktable Height：800~860mm

Area Covered：1200*900mm

From: GIRET CNC edge milling machine and Beveling machine

Website: http://www.xmzyart.com

Our Factory Provides:  CNC edge milling machine, HMI plate beveling machine, Table edge beveling machine, Plate bevelling machine, sheet bevelling machine, self-propelled bevelling machine, Stainless steel bevelling machine, Steel bevelling machine, Portable groove machine, handheld groove machine, portable groove machine, portable edge milling machine, Portable plate bevelling machine, Portable edge shearing machine, sheet beveling machine, plate welding grooves machine.
