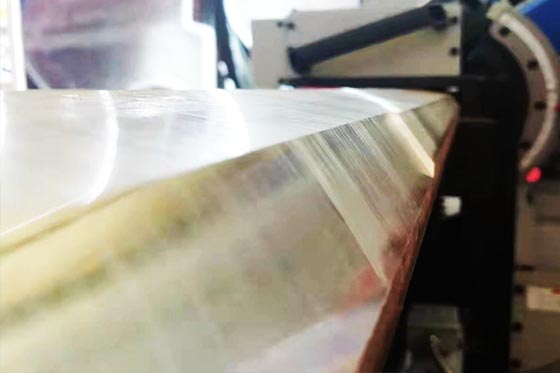

Double spindle toghter processing plate bevel, cold cutting, feed speed:0~1500mm/min

GMMA-100K Edge milling machine power data:
Power Supply：AC 380V 50HZ

Total Power：6480W

Cutting Power：2*3000W

Feed Motor：2*180W

GMMA-100K Edge milling machine technical parameters

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~100mm

Clamp Width：≥100mm (Not processing edge)

Processing Length：≥400mm

Single Bevel Width：0~20mm （Change according to material and angle）

Above Angle：0°~90° Adjustable

Under Angle：0°~-45°Adjustable

Above Bevel Width：0~60mm（Change according to bevel angle）

Under Bevel Width：0~45mm（Change according to bevel angle）

Cutter Plate：2*φ63mm

Cutter Qty：2*6pcs

Worktable Height：810~870mm

Travel Space：800*800mm

Net Weight：395kg

Gross Weight：460kg

Package Size：950*1180*1430mm

From: GIRET CNC edge milling machine and Beveling machine

Website: http://www.xmzyart.com

Our Factory Provides:  CNC edge milling machine, HMI plate beveling machine, Table edge beveling machine, Plate bevelling machine, sheet bevelling machine, self-propelled bevelling machine, Stainless steel bevelling machine, Steel bevelling machine, Portable groove machine, handheld groove machine, portable groove machine, portable edge milling machine, Portable plate bevelling machine, Portable edge shearing machine, sheet beveling machine, plate welding grooves machine.
