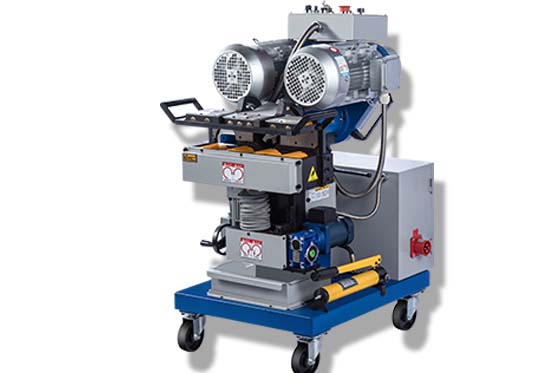

Auto plate edge milling machine, Auto plate beveling machine

GMMA-80A Edge milling machine technical parameters

Power Supply：AC 380V  50HZ

Total Power：4920W

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~80mm

Clamp Width：＞80mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：0°~60°Adjustable

Single Bevel Width：0~20mm（Change according to material and angle）

Bevel Width：0~70mm（Change according to bevel angle）

Cutter Plate：φ80 mm

Cutter Qty：6pcs

Worktable Height：700~760mm

Travel Space：800*800mm

Net Weight：245kg

Gross Weight：280kg

Package Size：800*690*1140mm
