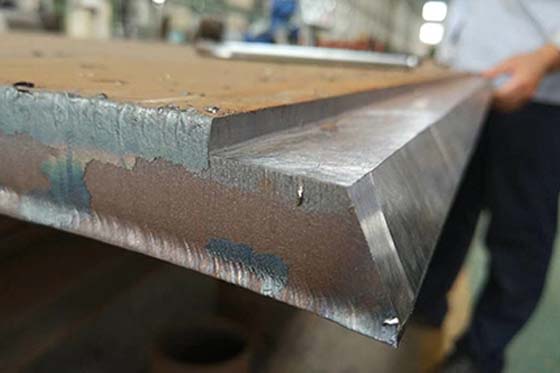

Bevel angle:0 to 90degree adjustable, bevel width: 45mm， feed speed:0~1500mm/min

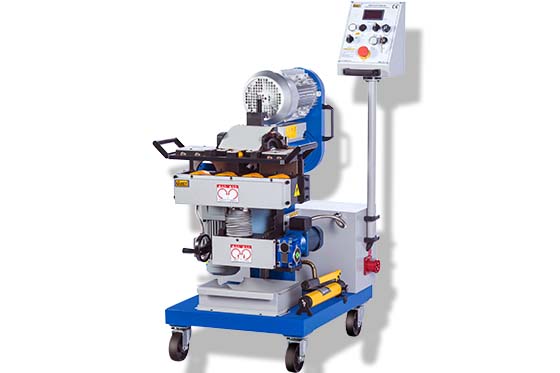

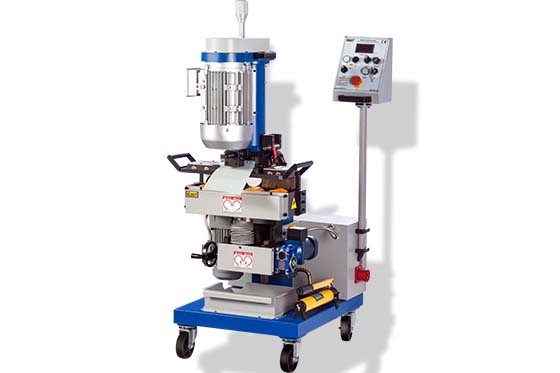

GMMA-60L Plate Edge milling machine technical parameters:

Power Supply：AC 380V  50HZ

Total Power：4520W

Spindle Speed：1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~60mm

Clamp Width：＞80mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：0°~90°Adjustable

Single Bevel Width：0~20mm（According to bevel angle and material）

Bevel Width：0~60mm（Change according to bevel angle）

Cutter Plate：φ63mm

Cutter Qty：6pcs

Worktable Height：700~760mm

Travel Space：800*800mm

Net Weight：225kg

Gross Weight：260kg

Package Size：950*700*1230mm

From: GIRET CNC edge milling machine and Beveling machine

Website: http://www.xmzyart.com

Our Factory Provides:  CNC edge milling machine, HMI plate beveling machine, Table edge beveling machine, Plate bevelling machine, sheet bevelling machine, self-propelled bevelling machine, Stainless steel bevelling machine, Steel bevelling machine, Portable groove machine, handheld groove machine, portable groove machine, portable edge milling machine, Portable plate bevelling machine, Portable edge shearing machine, sheet beveling machine, plate welding grooves machine.
