Table edge milling machine bevel angle:10~75degree, Bevel width:0~70mm

GMMA-30T Table edge milling machine power data:

Power Supply：AC 380V  50HZ

Total Power：4400W

Feed Power: 400W

GMMA-30T Table edge milling machine technical parameters

Spindle Speed：1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：8~80mm

Clamp Width：＞80mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：10°~75°Adjustable

Single Bevel Width：0~20mm（According to bevel angle and material）

Bevel Width：0~70mm （Change according to bevel angle）

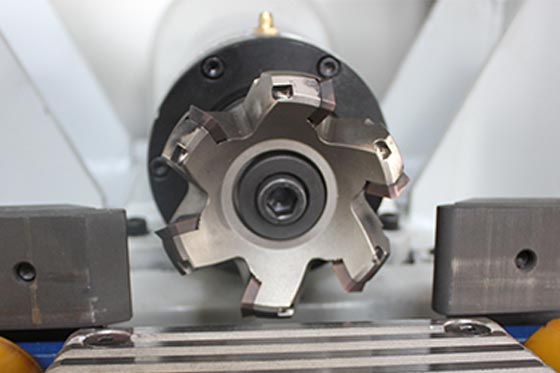

Cutter Plate：φ80 mm

Cutter Qty：6pcs

Worktable Height：850~1000mm

Worktable Size：1050*550mm

Net Weight：850kg

Gross Weight：920kg

Package Size：1210*1310*1750mm
